Item No. RBFGGRAP

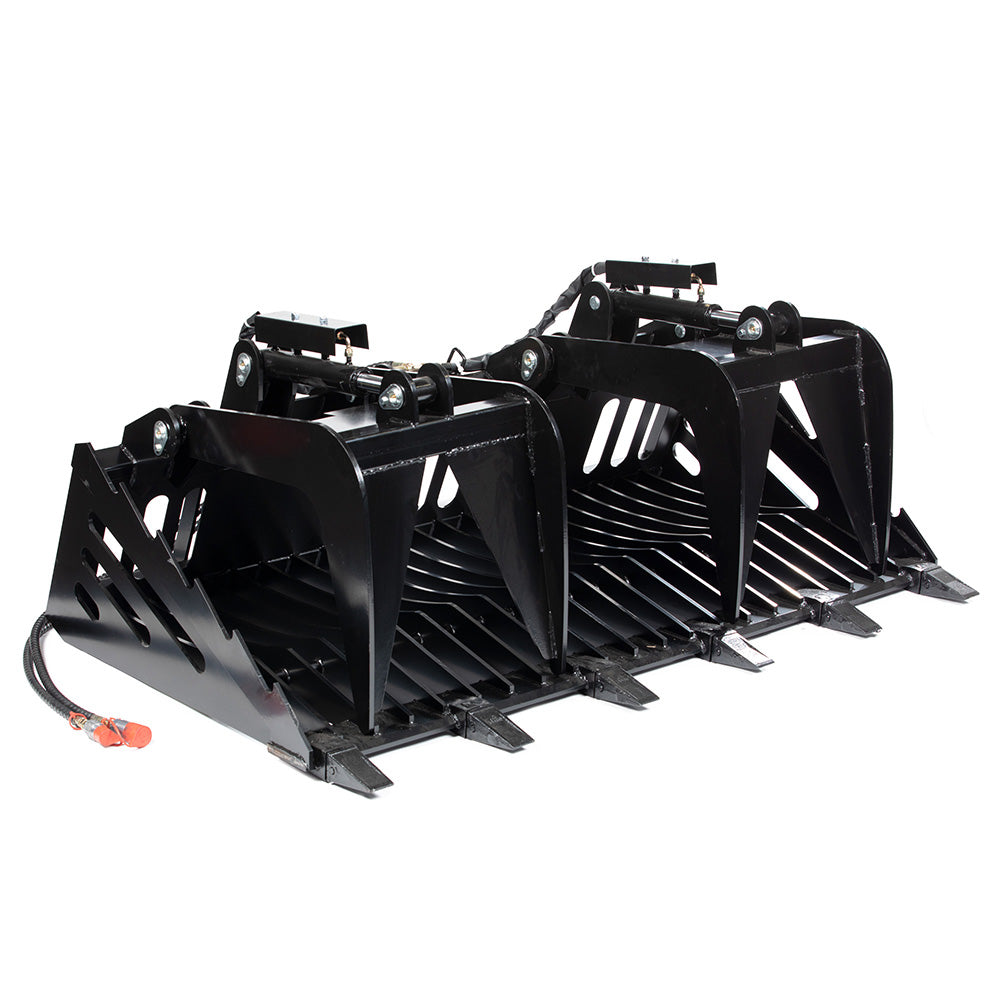

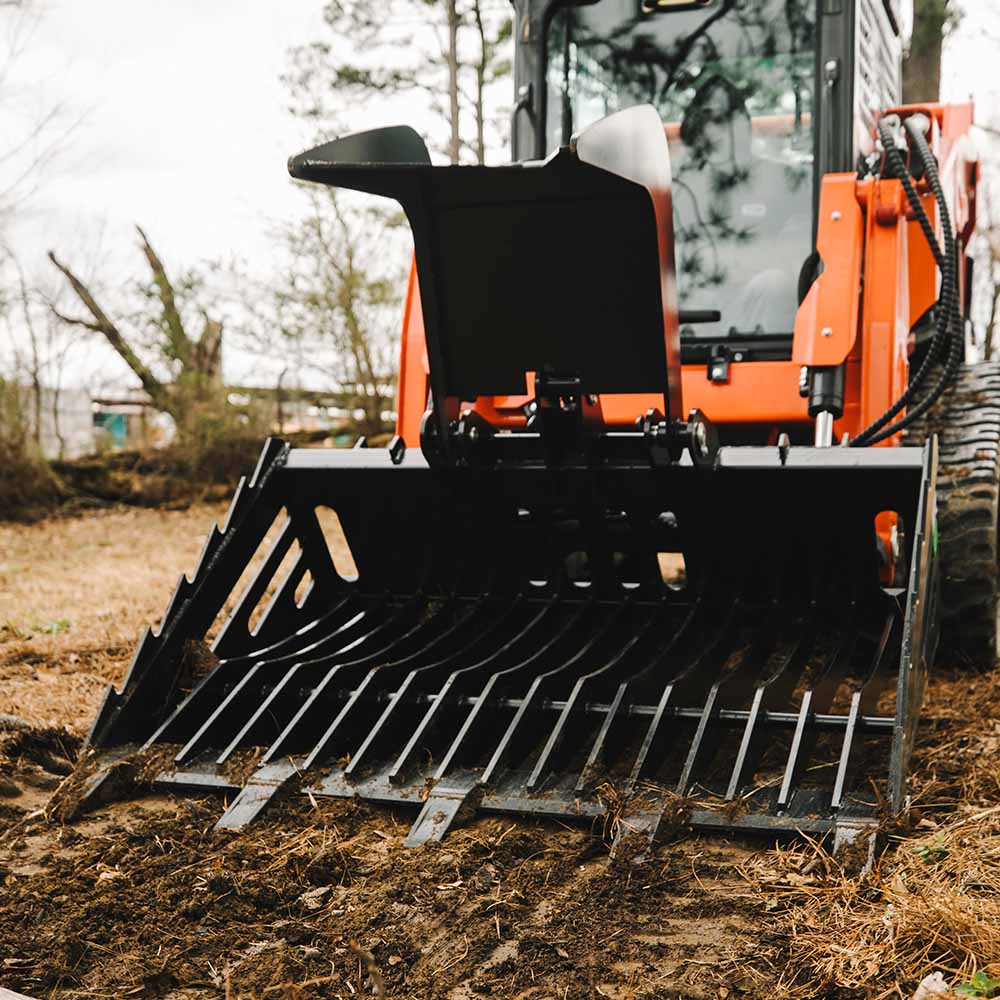

Fine Grade Skeleton Rock Grapple Rakes

Item No. RBFGGRAP

Fine Grade Skeleton Rock Grapple Rakes

Titan Attachments RBFGGRAP null

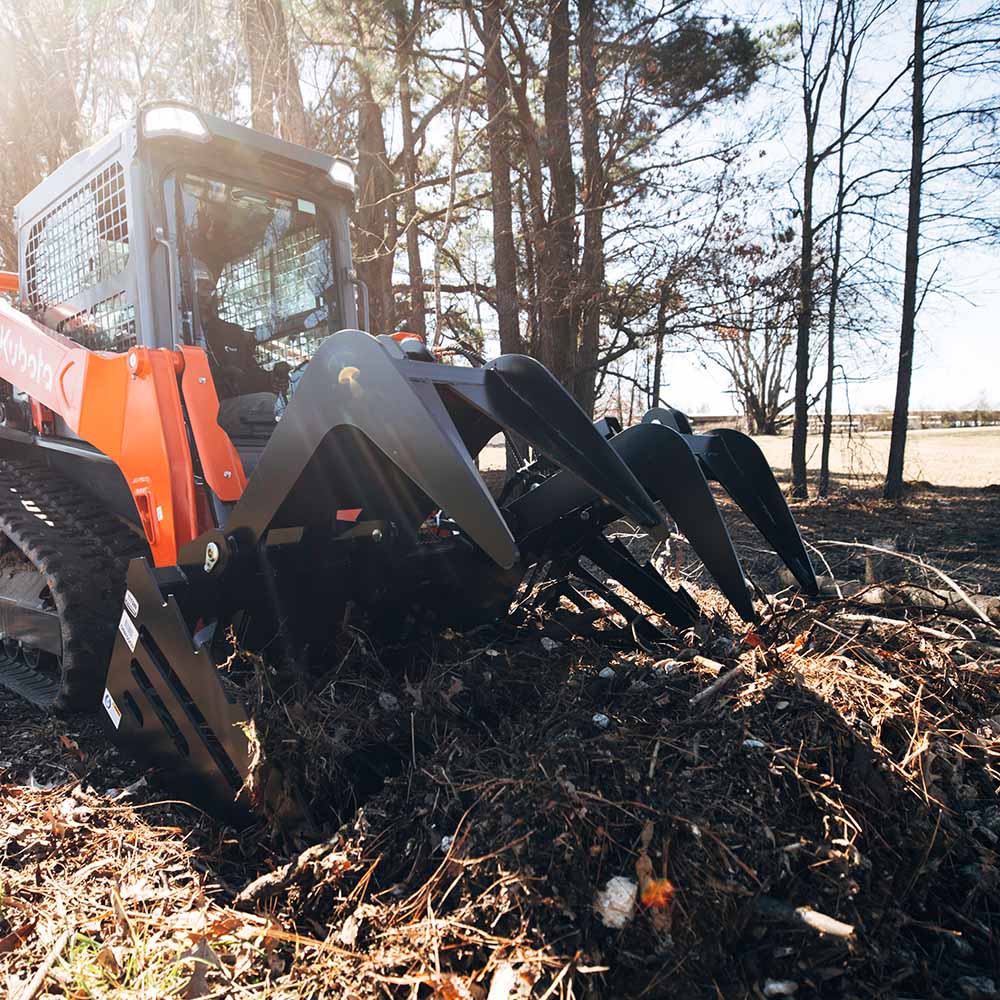

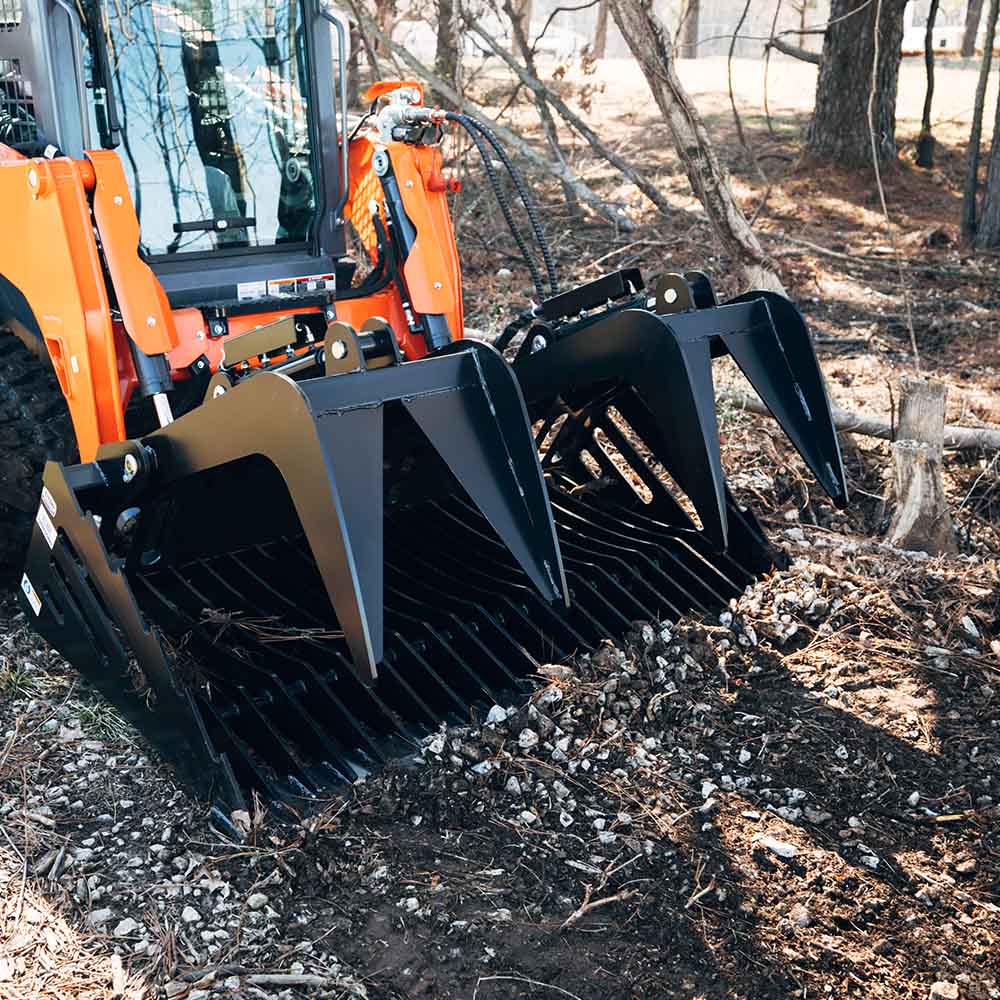

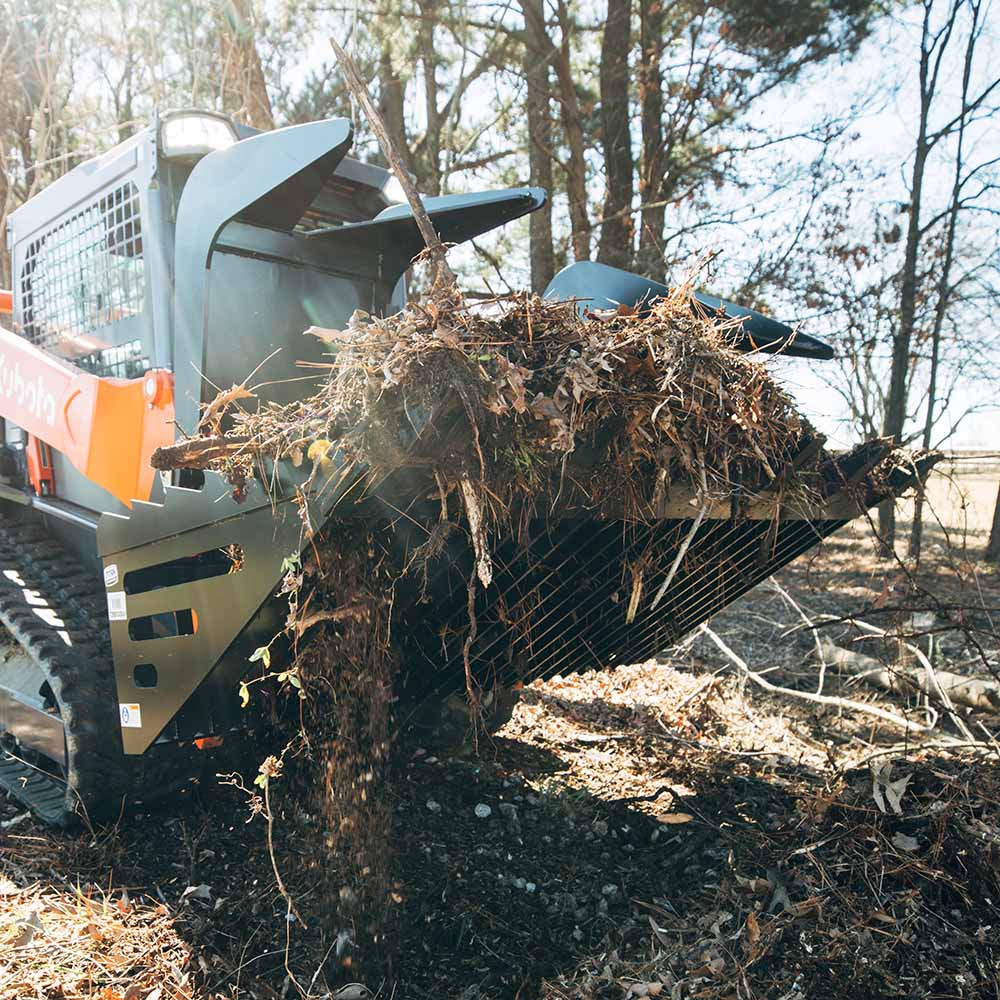

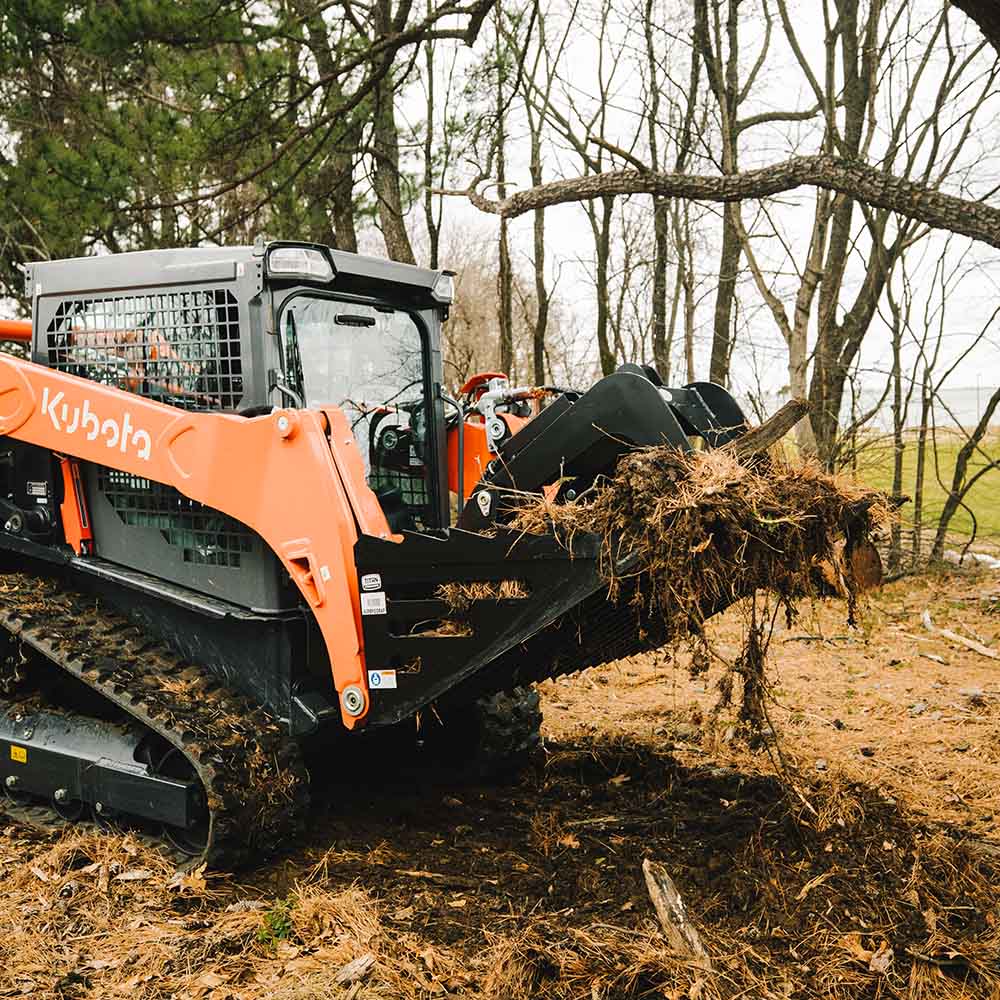

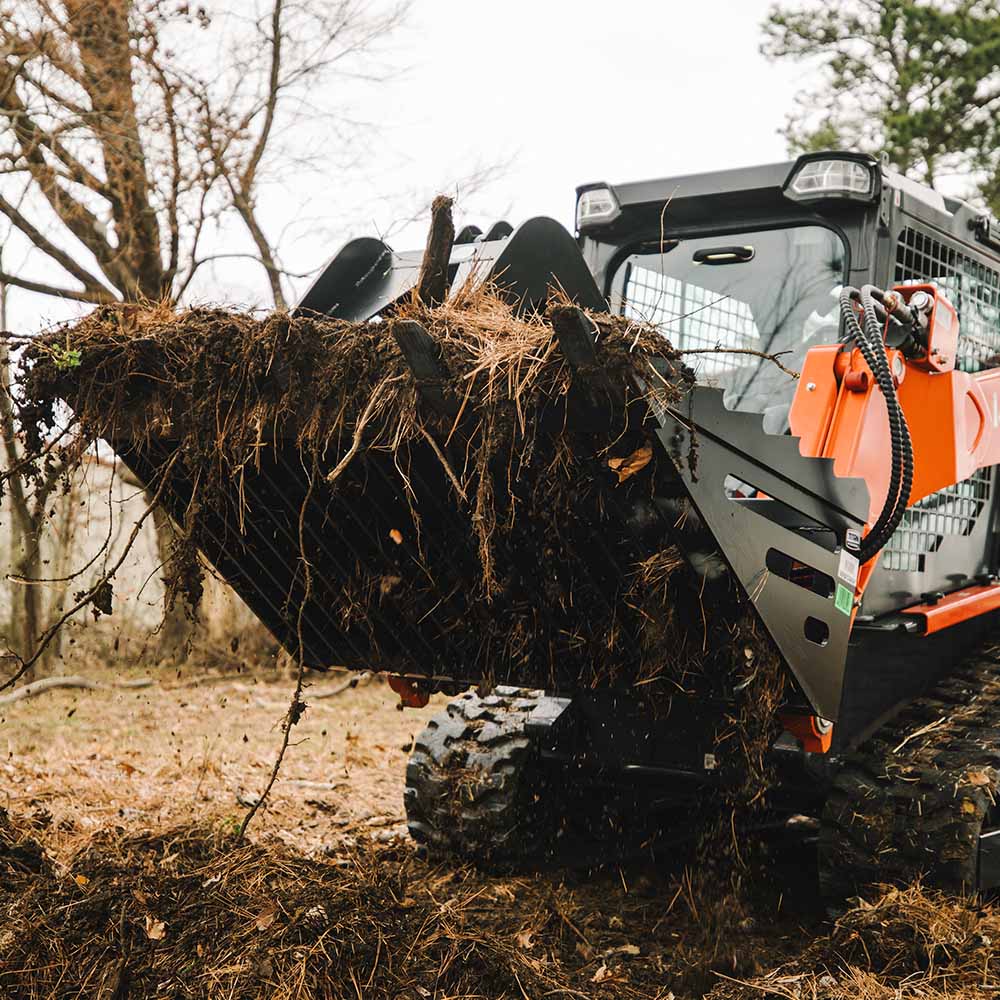

The Fine Grade Skeleton Rock Bucket Grapple Rakes are a great agriculture grapple used around the farm or ranch made to move rocks, brush, and debris with ease.
$1,74999 $1,749.99 - $2,32999 $2,329.99
Select Styles for Availability

The Fine Grade Skeleton Rock Bucket Grapple Rakes are a great agriculture grapple used around the farm or ranch made to move rocks, brush, and debris with ease.

product overview

These Fine Grade Skeleton Rock Grapple Rakes are designed to make sifting through rocks and debris effortless. With single or dual, 2.5-inch bore x 8-inch stroke hydraulic cylinders; they have the strength to lift and transport just about any obstruction. Available in 60, 72, or 82-inch widths featuring a 35.5-inch opening, they can efficiently hoist oversized and an array of rocks, brush, and debris. Plus, the buckets include a universal hookup, these grapples will attach with ease. Add one of these attachments to your collection to help you get the job done right.

NOTE: When you order this grapple rake, you will need to provide your phone number so the trucking and shipping company can schedule delivery.
Show More Show Less

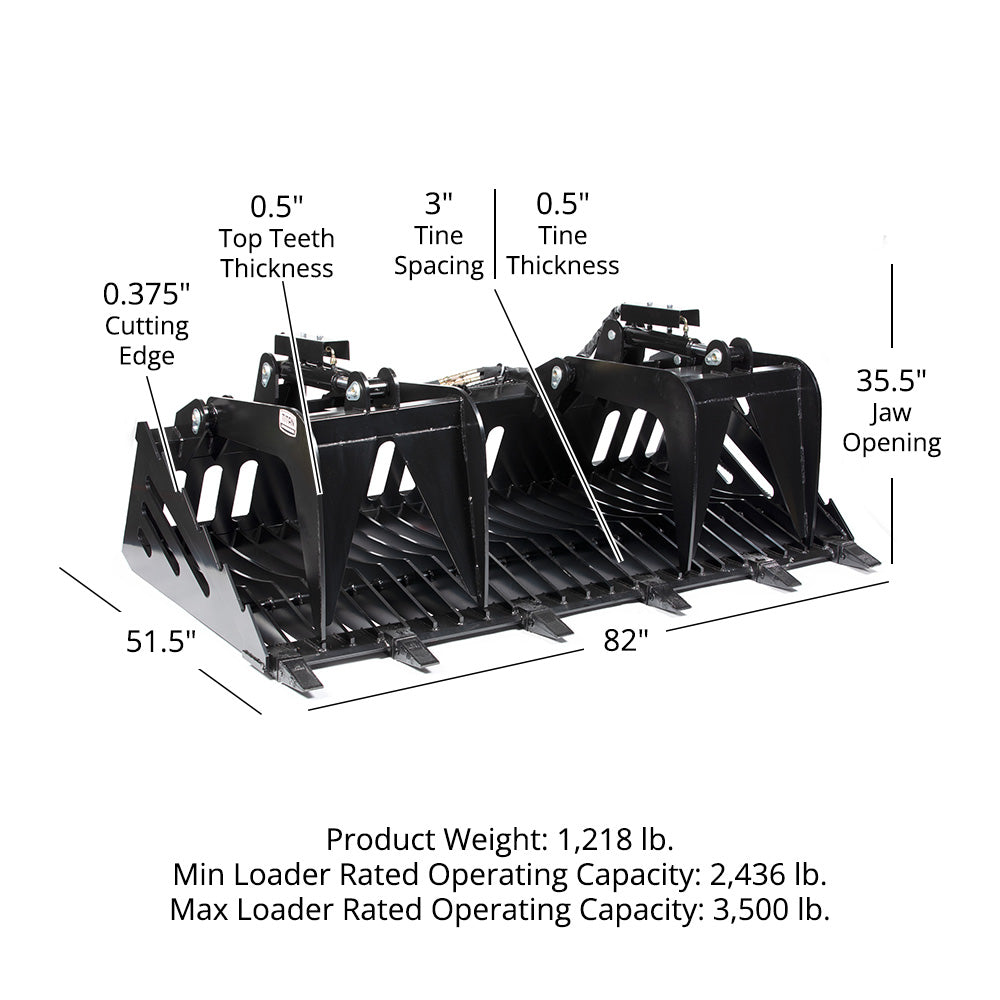

Specifications

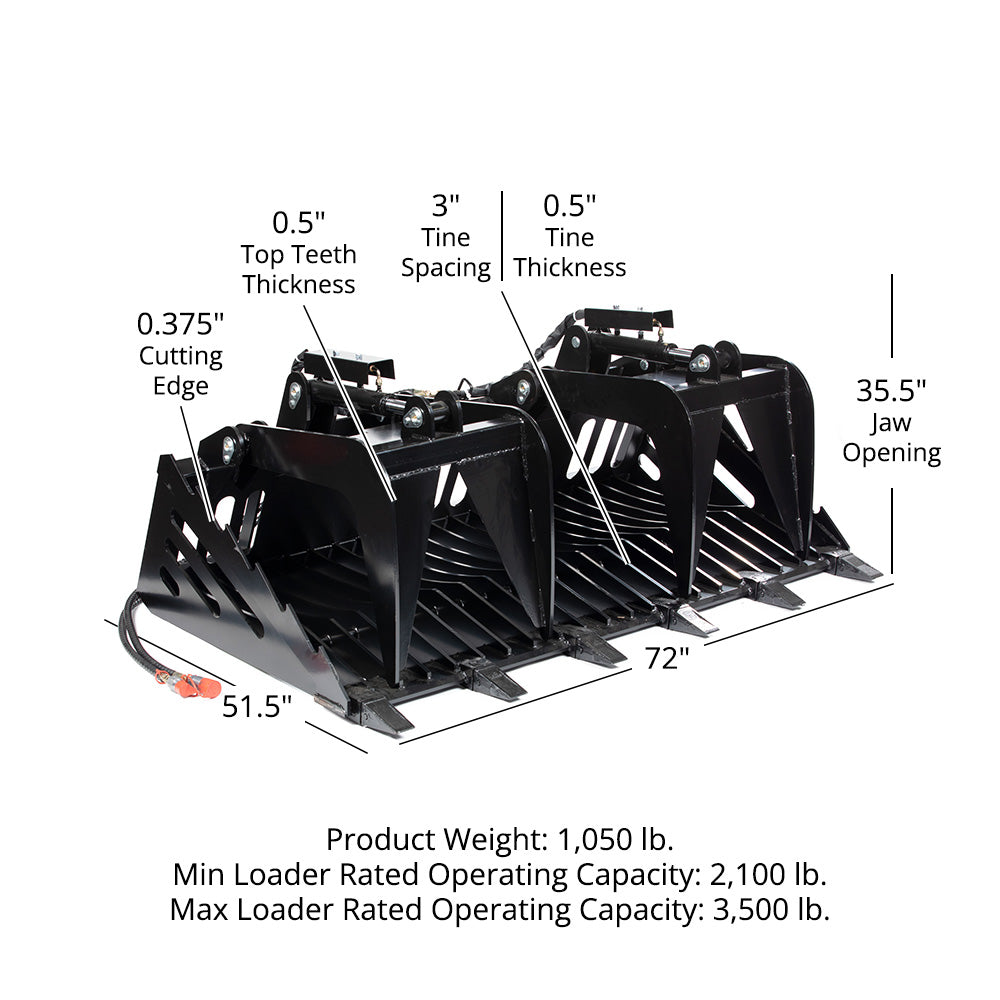

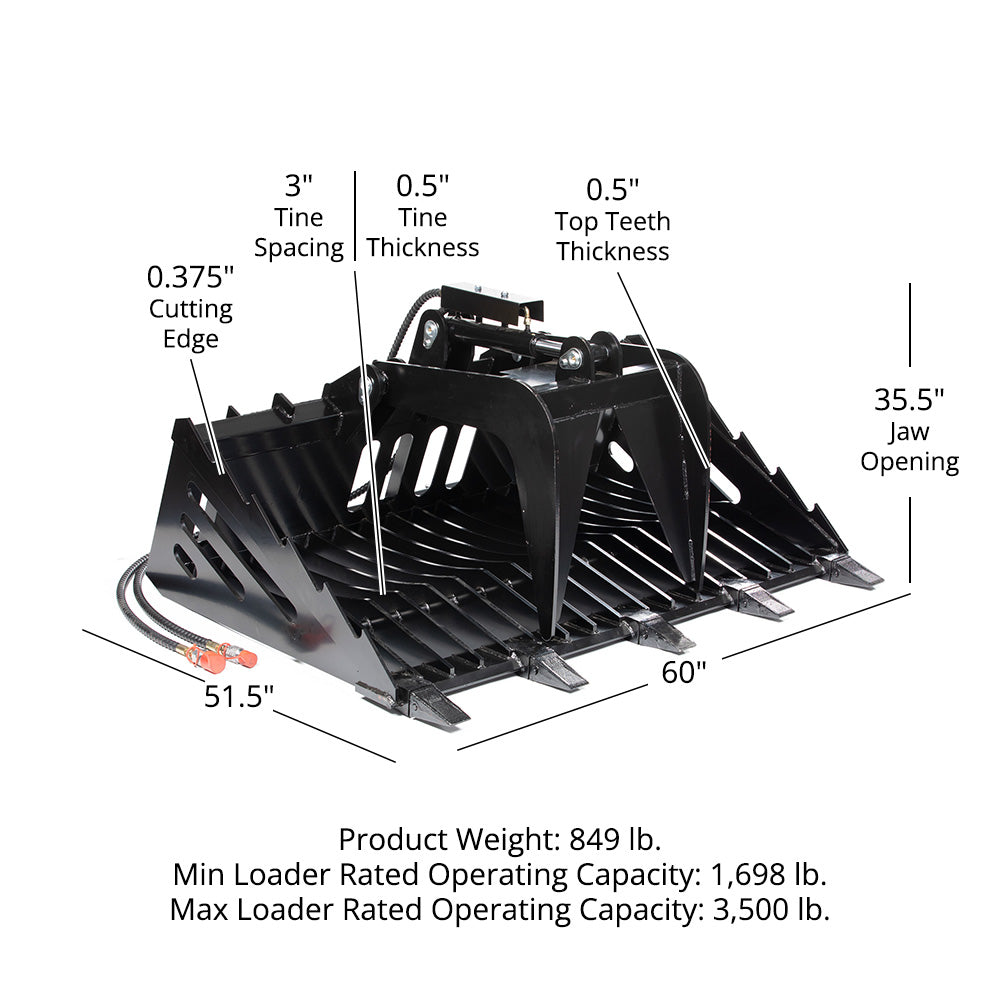

Max Opening Height 35.5-in.
Overall Width 61-in. / 73-in. / 83-in.
Overall Depth 51.5-in.
Inside Width 60-in. / 72-in. / 82-in.
Inside Depth 38-in.
Spacing Between Tines 3-in.
Cutting Edge 1-in.
Teeth 6-in. Long LW80
Tooth Count 5 - 7
Finish Powder-Coated Black
Material 0.5-in. Steel
Product Weight 849 lb. - 1,200 lb.

Details

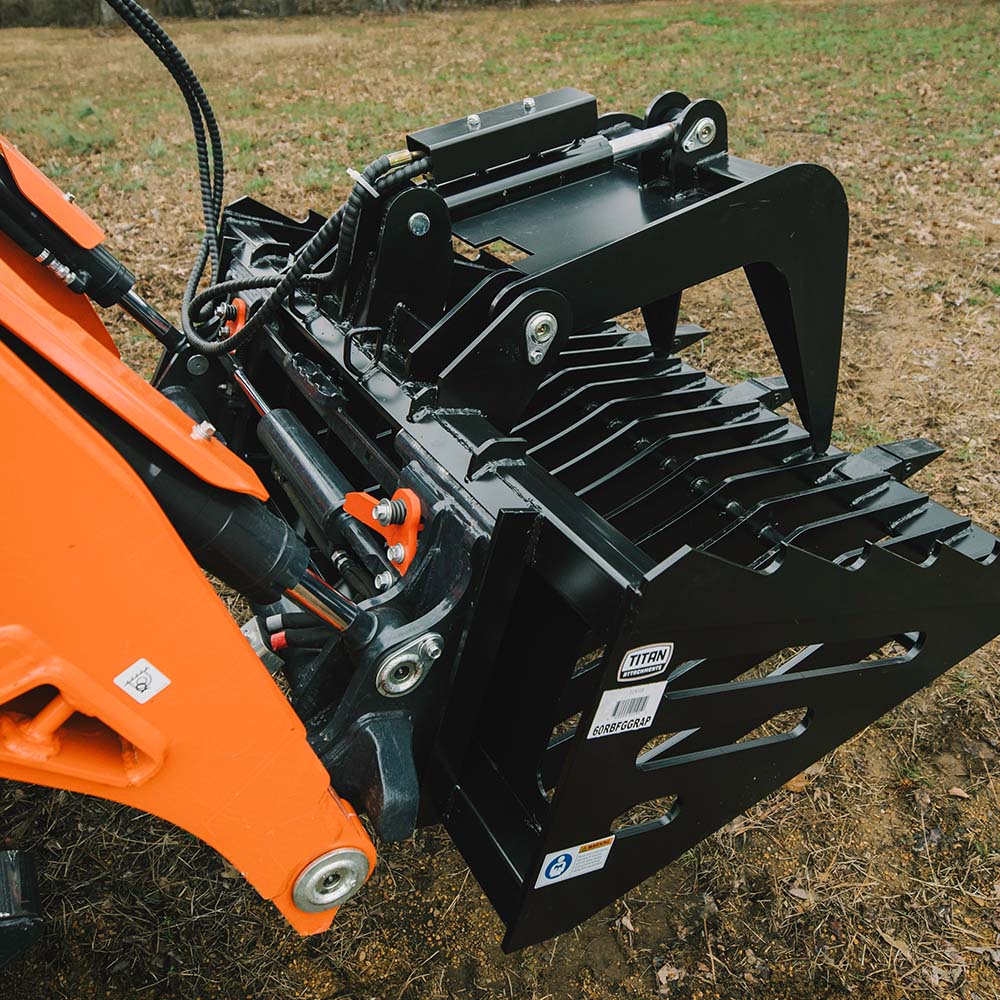

- Connects to Skid Steers and Quick Tach Tractors

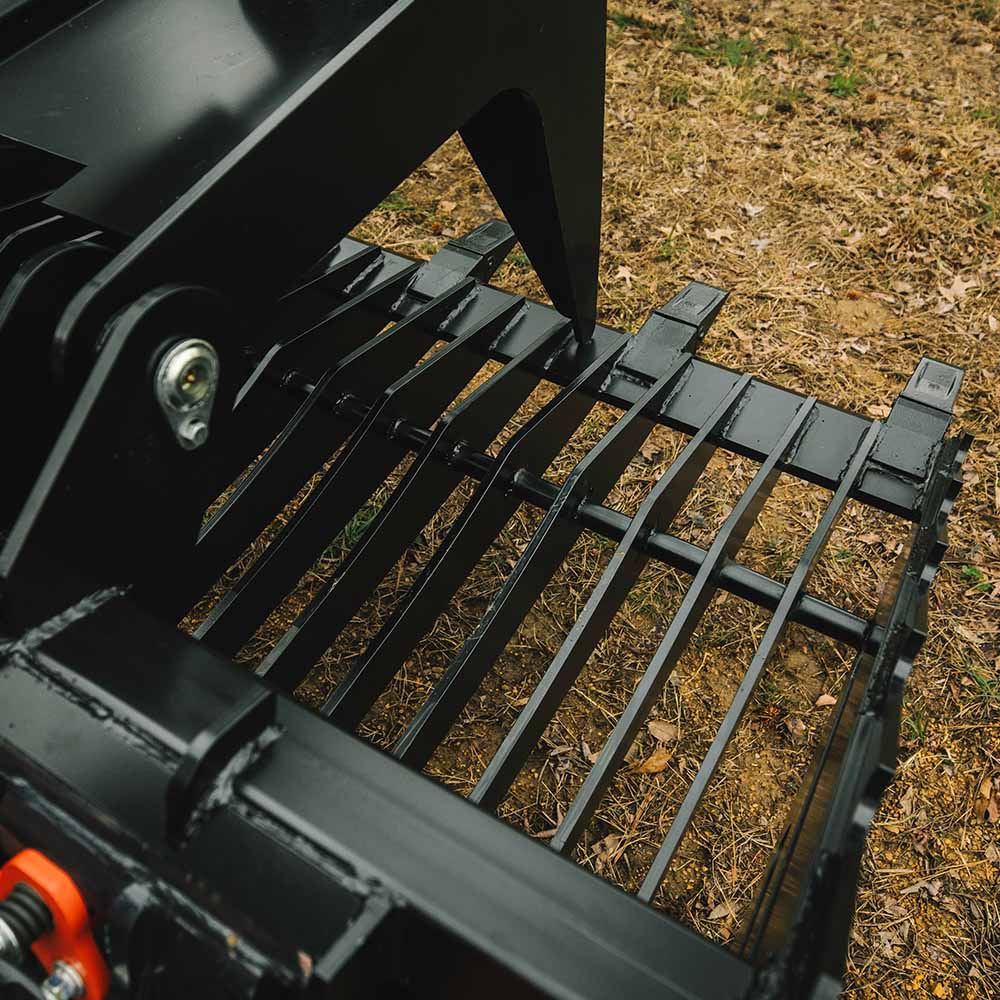

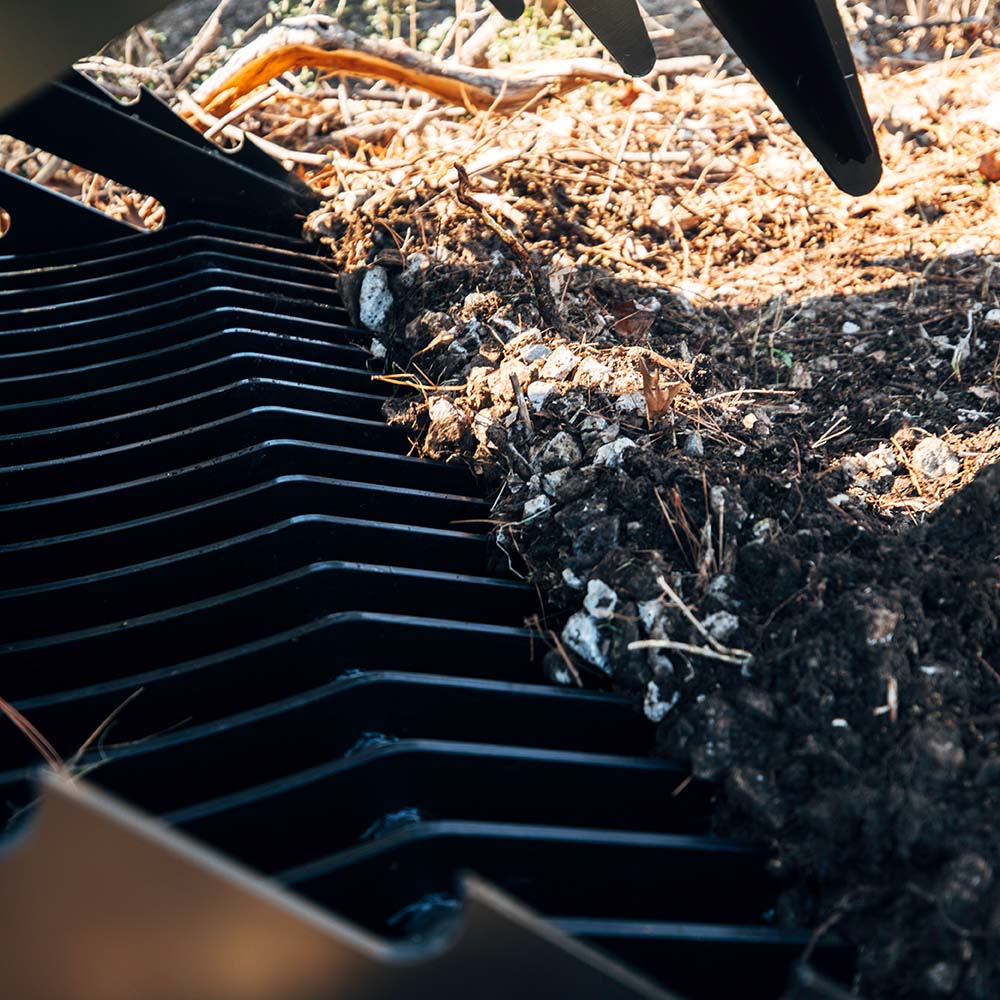

- Fine Grade tines are spaced 3-inches apart

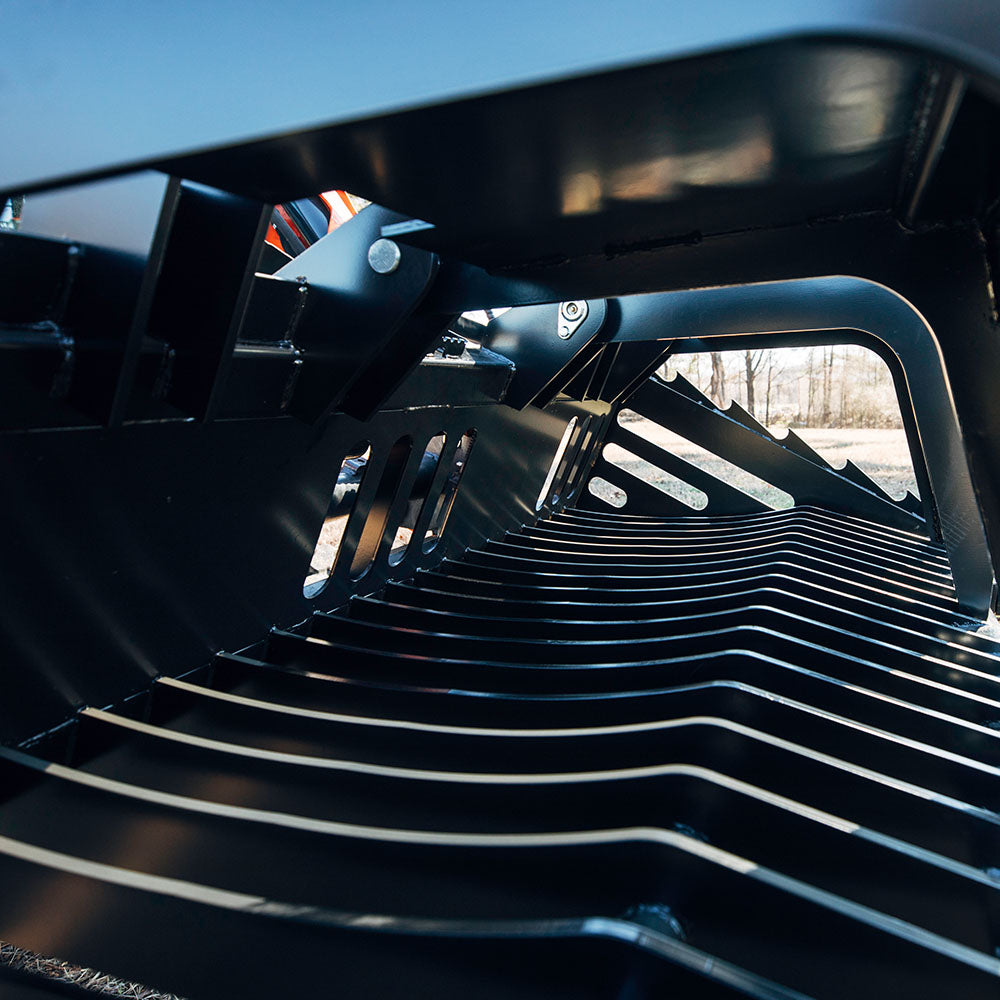

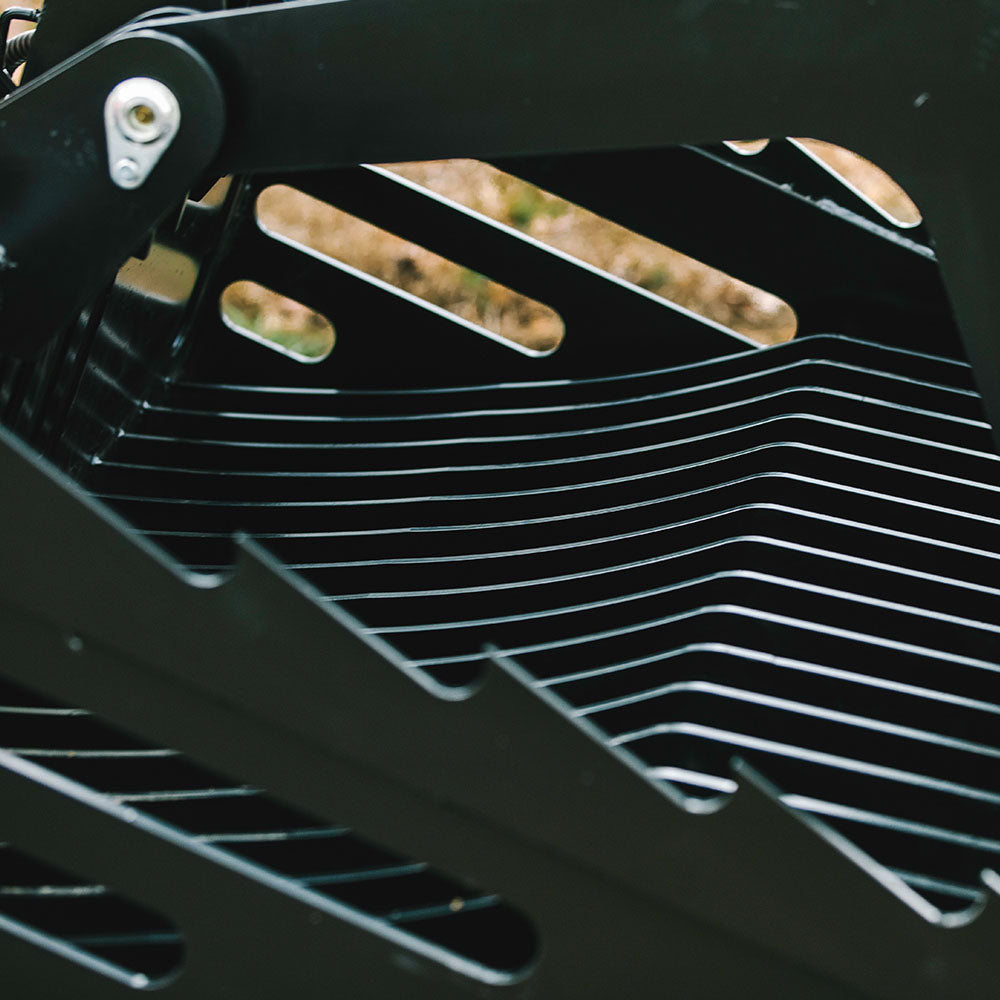

- Open Tine Bottom for sifting debris

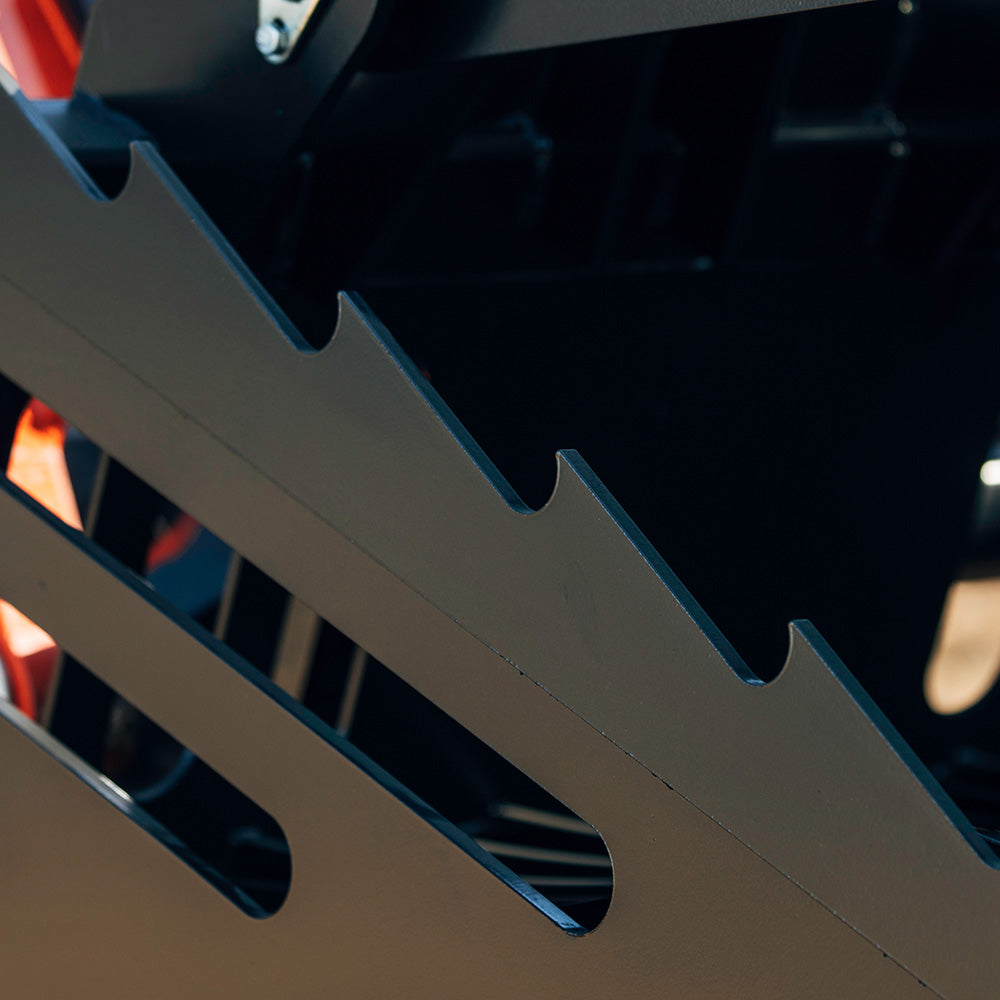

- Reinforced side cutters and cutting edge
- LW80 Replaceable teeth
- Frame is built with 3 x 3-inch steel tubing

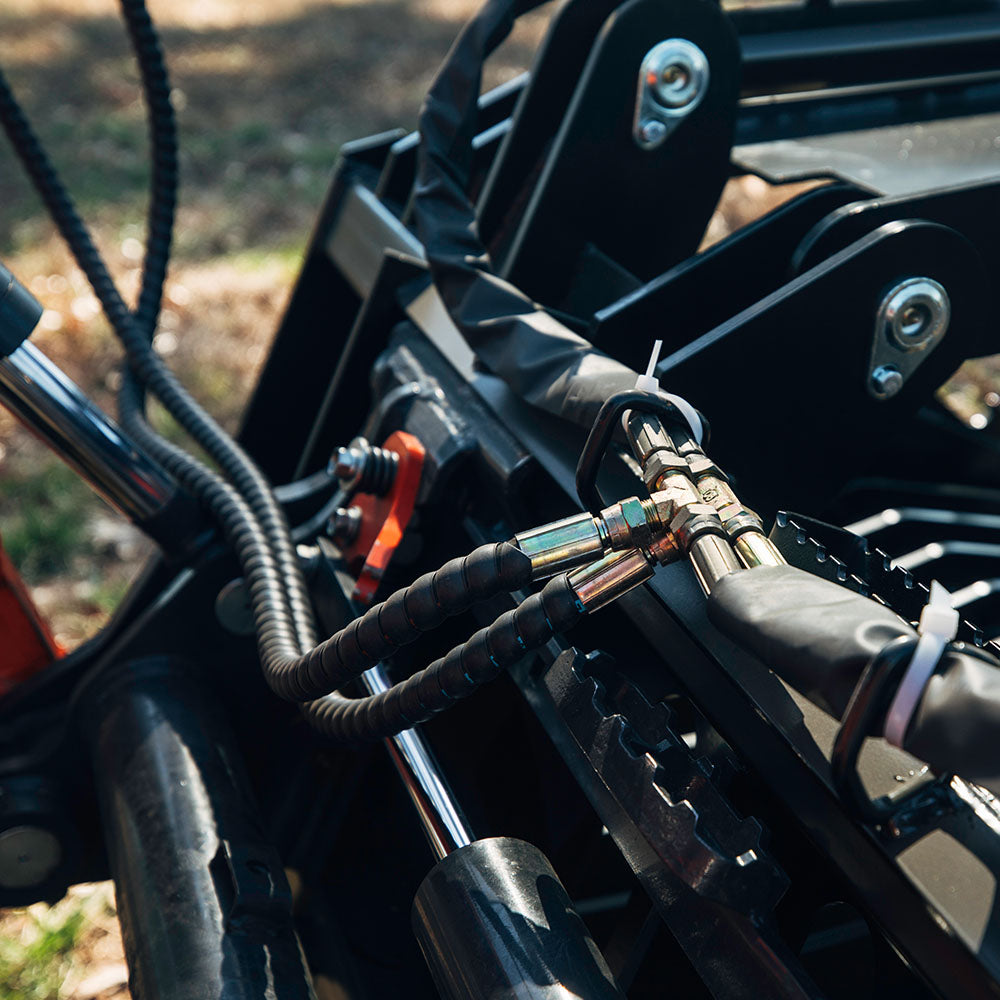

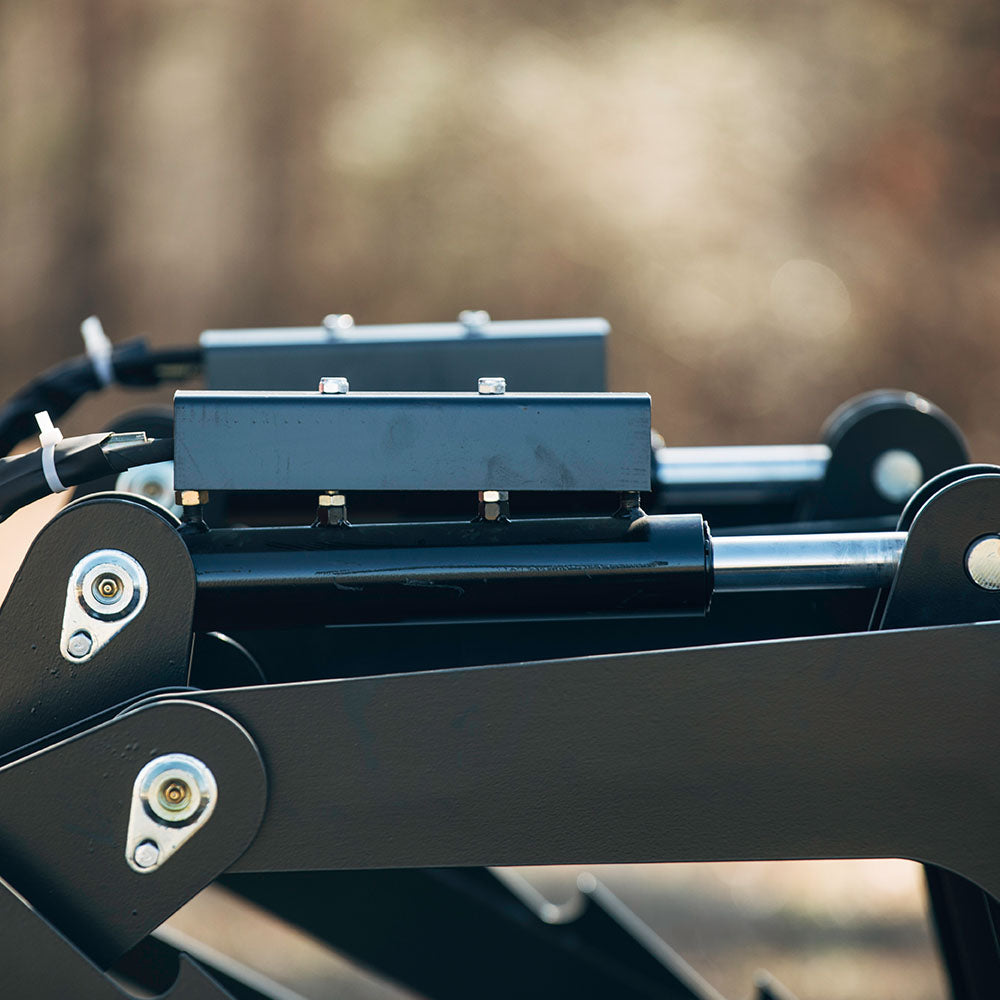

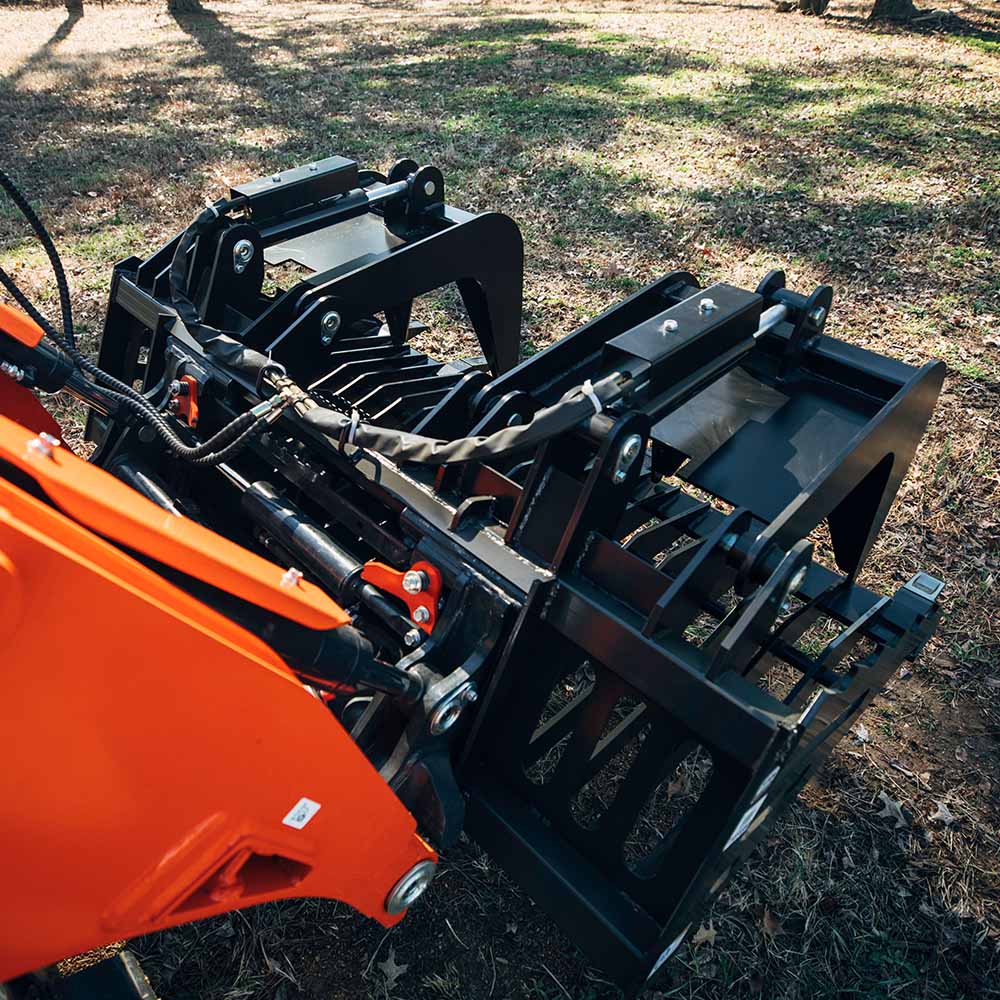

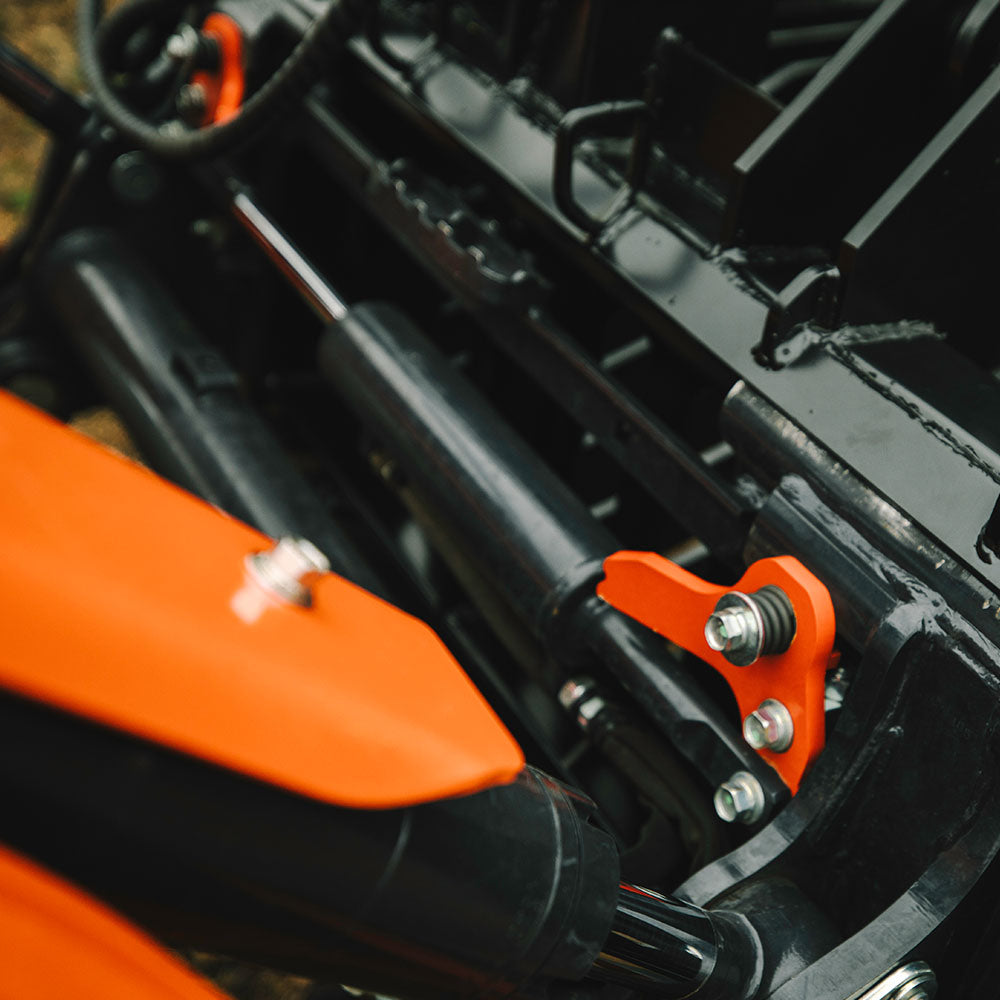

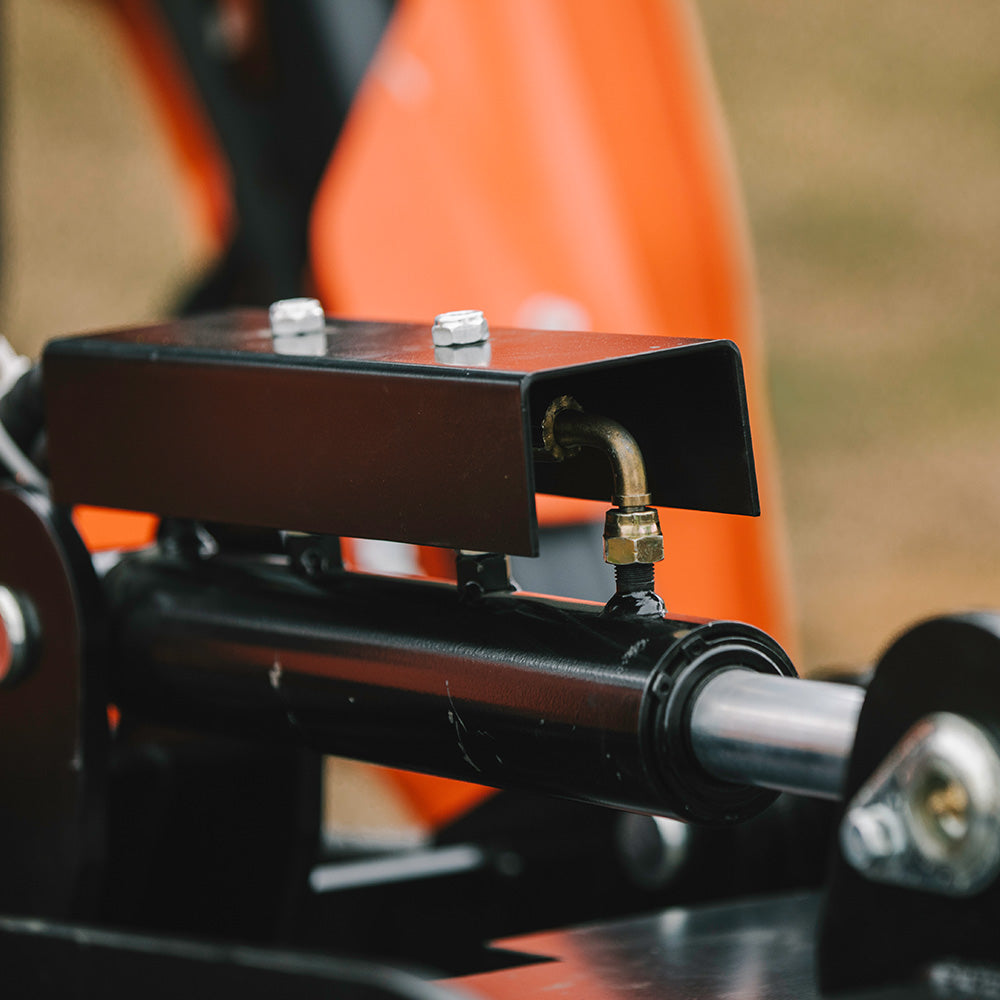

- Single or Dual 2.5-in bore x 8-in stroke hydraulic cylinders

REPLACEMENT TEETH AVAILABLE:
- 125048 - LW80KIT – Single Tooth Assembly
- 125049 - LW80KIT(3) – Three Pack Tooth Assembly
- 125050 - LW80KIT(5) – Five Pack Tooth Assembly
