Standard Series Pallet Fork Frame Attachment, Fits John Deere

$674.96

$1,149.99 $674.96 41% off (Save $475.03)

Standard Series Pallet Fork Frame, Fits John Deere Hook and Pin | Frame + 36" Blades

Standard Series Pallet Fork Frame, Fits John Deere Hook and Pin | Frame + 42" Blades

Standard Series Pallet Fork Frame, Fits John Deere Hook and Pin | Frame + 48" Blades

Standard Series Pallet Fork Frame, Fits John Deere Hook and Pin | Frame + 60" Blades

Standard Series Pallet Fork Frame, Fits John Deere Hook and Pin | Frame Only

Standard Series Pallet Fork Frame, Fits John Deere Hook and Pin

Standard Series Pallet Fork Frame Attachment | 36" Fork Blades

$674.96

$1,149.99 $674.96 41% off (Save $475.03)

Promo codes are not eligible on this item

This Standard Series Pallet Fork Frame comes with two 36" Class II fork blades.

Connection Type : John Deere Hook & Pin

Choose Optional Pallet Fork Blades. Forks and Frames May Ship Separately. : Frame + 36" Blades

Frame + 36" Blades Frame + 42" Blades Frame + 48" Blades Frame + 60" Blades Frame Only

Product variants

SKU: SKU: 132287

Availability:

In Stock

Fast & Free Shipping on Every Order

Handling fee applies to oversize items

1-Year warranty included

Extended coverage available with Mulberry

Buy Now, Pay Later

Flexible payment options available with Bread Pay™

View full details

Standard Series Pallet Fork Frame Attachment, Fits John Deere

Overview Specs Details Reviews

$674.96

$1,149.99 $674.96

41% off (Save $475.03)

$674.96

$1,149.99 $674.96

41% off (Save $475.03)

The Titan Attachments Standard Series Pallet Fork Frame Attachment triples as a fork frame, hay frame, and lightweight towing hitch. Attach it to any John Deere quick attach tractor for a secure and simple connection.

This pallet fork frame features a slotted carriage bar for mounting Class II pallet fork blades for moving pallets, feed, and other materials. It also has welded sleeves for installing Conus 2 hay spears (sold separately) and a 2" receiver hitch for tackling lightweight towing tasks.

Rated at 4,000 LB, this pallet fork frame has a higher weight capacity than the Economy Series frame and includes a see-through headache rack for durability and better visibility.

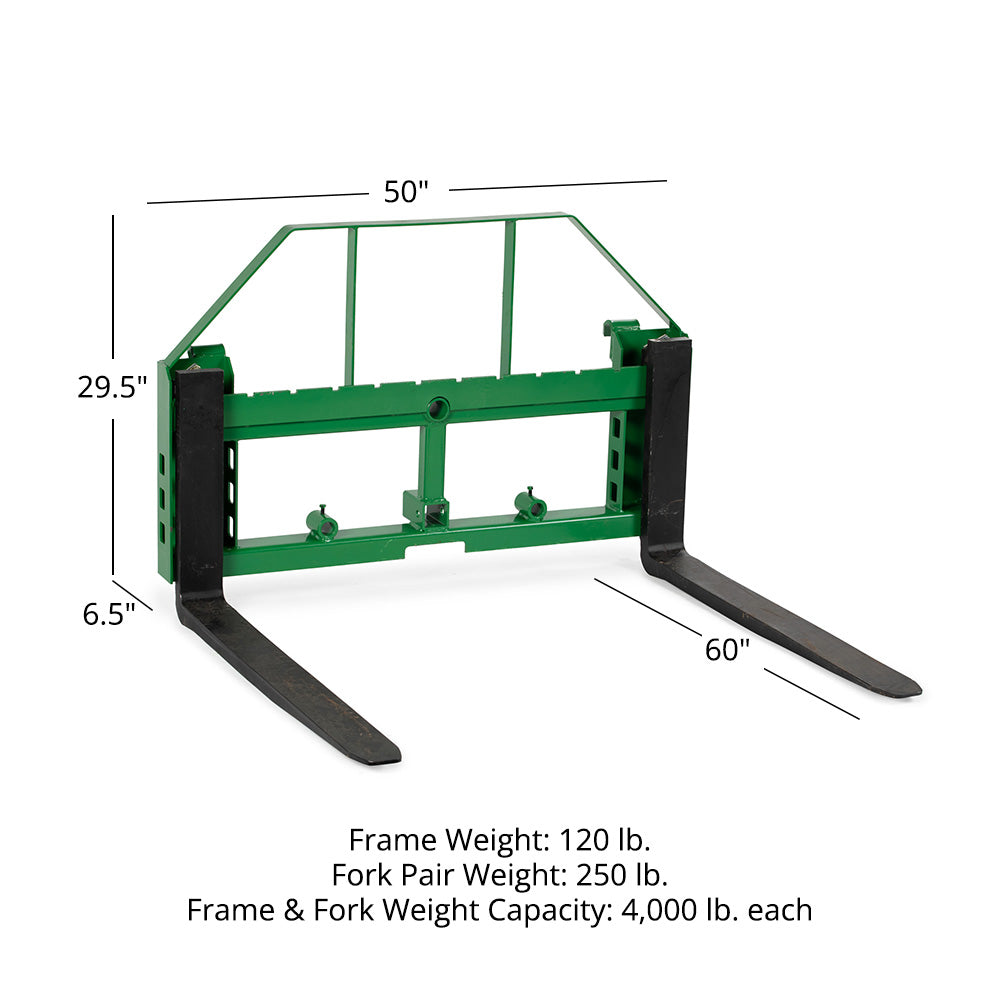

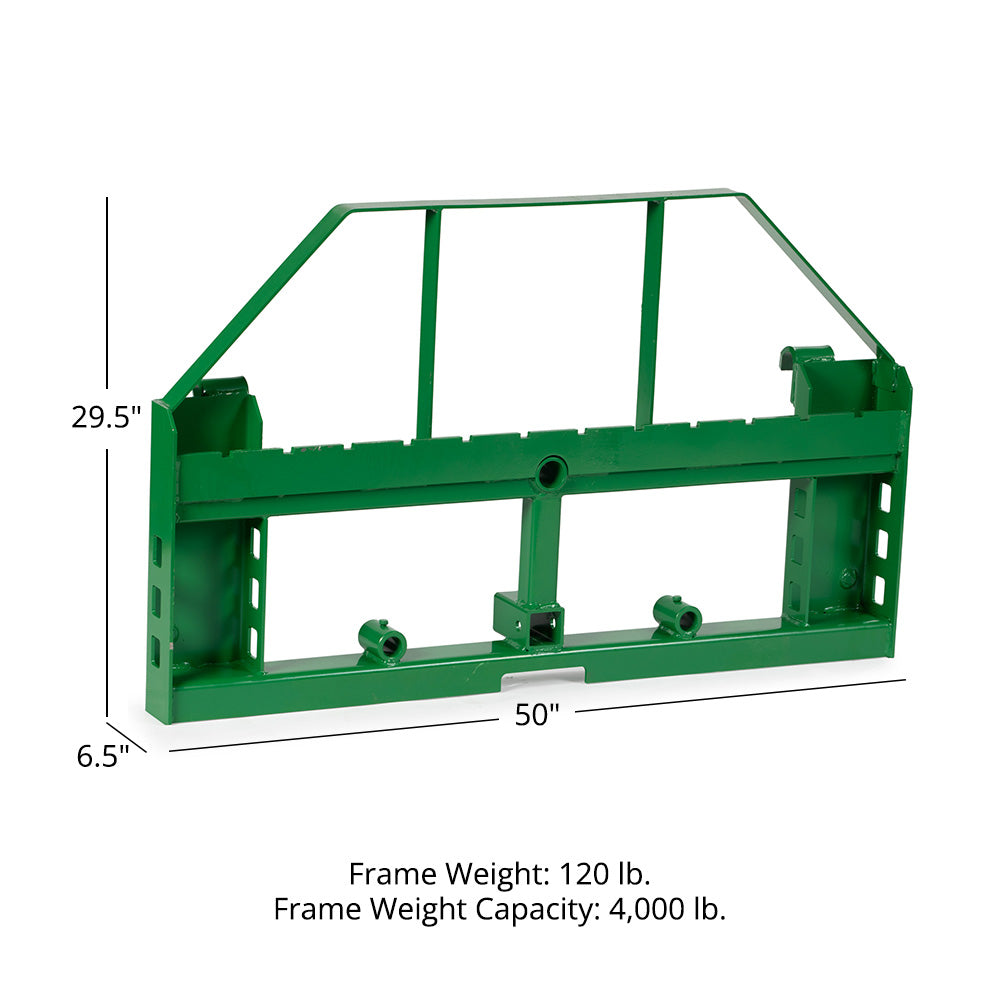

Specifications

Frame Height

29.5-in.

Frame Width

50-in.

Frame Depth

6.5-in.

Fork Length

36-in.

Fork Width

4-in.

Fork Thickness

1.25-in.

Pallet Fork Blades

Class 2

Upper to Lower Rail

16-in.

Main Spear Sleeve

Conus 2

Receiver Hitch Dimensions

2-in. x 2-in.

Material

Finish

Powder-Coated Green

Material

Steel

Weight

Frame Weight Capacity

4,000 lb.

Frame Weight Capacity

4,000 lb.

Fork Pair Weight

160 lb.

Frame Weight

120 lb.

Details

‍Hook and pin mounting style
‍3-in-1 fork frame for moving pallets, hay bales, and trailers
‍See-through headache rack
‍Integrated hay spear sleeves
‍2" receiver hitch
‍Optional Class 2 pallet fork blades
‍Accepts Conus 2 hay bale spear (sold separately)
‍Accepts two stabilizer spears (sold separately)

View Product Manual

Additional Info

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Disclaimer

This equipment must be used with care by capable and competent individuals under supervision, if necessary. The use of any equipment, including this one, involves the potential risk of injury. You accept and assume full responsibility for any and all injuries, damages (both economic and non-economic), and losses of any type, which may occur, and you fully and forever release and discharge Titan, its insurers, employees, officers, directors, associates, and agents from any and all claims, demands, damages, rights of action, or causes of action, present or future, whether the same be known or unknown, anticipated, or unanticipated, resulting from or arising out of the use of said equipment.

TITAN MAKES NO WARRANTY WHATSOEVER WITH RESPECT TO THE EQUIPMENT, INCLUDING ANY WARRANTY OF MERCHANTABILITY OR WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE, WHETHER EXPRESS OR IMPLIED BY LAW, COURSE OF DEALING, COURSE OF PERFORMANCE, USAGE OF TRADE OR OTHERWISE. BUYER ASSUMES ALL LIABILITY IN USE OF THE EQUIPMENT.
